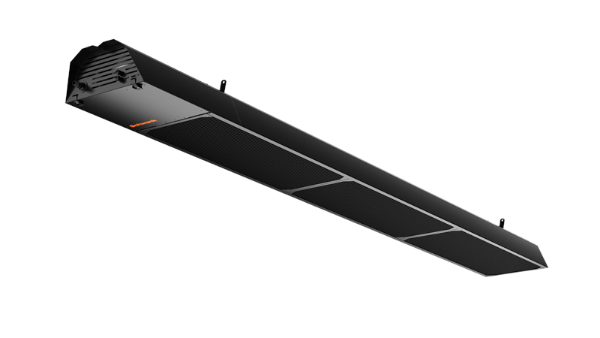

STP-TA11-15-BN phantomSchwank STP 2-Stage 115,000 Patio Heater

phantom Schwank STP Series Two Stage 115,000 Btu 17' NG Heater C/W EC Motors And Wireless Control.

They feature unique built-in smart wireless controls, allowing operators to use a mobile device/tablet to connect with Google smart devices or pair with Schwank. ONE control seamlessly.

Available in 2-stage, this fully enclosed wind-resistant model ranges from 35,000 to 115,000 BTUs and is available in 12′ and 17′ lengths. It is easy to install and maintain.
The ultra-low clearances and a broad range of mounting options provide effortless placement, creating a polished outdoor patio environment without compromising safety or functionality.

Models

• 35,000 – 115,000 input BTU/HR models
• 12’and 17′ heater lengths
• Built with an EC Motor across the complete product line
• Available in 2-stage
• Mounting options range from 8′ to 17′ heights
• Factory-installed tabulators and mounted igniter
• Warranty 10-year burner-cup, 10-year tubes, 3-year components
• UL Certified

Features Elusive Design

• Phantom black powder-coated finish.
• Intricate detailing of the grille.
• Low profile model.
• Ultra-low clearances with versatile mounting configurations.
• Fully enclosed unit.
• Overall captivating design with clean lines, sleek aesthetics, and minimalist shapes.

Energy-Efficient EC Motor

• High-efficiency EC Motor with advanced whisper-quiet operation is 2-3x more efficient than standard Shaded Pole or PSC motors.

Optimal Serviceability

• Accessible screw less latch with a swing-down cabinet for easy maintenance access; we have skipped the screws again for this model.
• Factory pre assembled modules for easy onsite installation

Built-in Smart Wireless Controls

• Easy-to-use control app or web browser.
• Connects to your WIFI and is compatible with mobile devices/tablets.
• Functionality to control on/off, high/low, and program weekly schedules (controls designed with the owner/manager in mind).
• Compatible with smart devices.
• Flexibility to turn on part or parts of your patio space with the ability to manage “zones.”
• Pairs with Schwank.ONE control.

Engineered for Performance in outdoor patios

• Engineered with marine-grade aluminum alloy.
• Optimized reflector provides a more uniform heat distribution.
• Wind-resistant, fully enclosed model.
• Factory pre-assembled modules for easy onsite installation.
• Easily convert the unit in the field from NG to LP.

Built with EC Motor Technology

• The latest advancement in infrared heating

Intuitive and enhanced operation

• Provides +85% energy efficiencies throughout a full range of operations, in addition to whisper-quiet operation.
• An EC Motor is 2x more efficient than a PSC motor (Permanent Split Capacitor) and 3x more efficient than a Shaded Pole AC motor commonly used for infrared tube heaters.
• A constant-torque EC Motor leads to more robust and stable combustion throughout the heaters’ entire range of operation and external pressure changes.
• Schwank has engineered a customized control board (power input 24VDC) for the 2-stage phantom Schwank Series.

Intelligent control technology for heating systems

• Optimized reflector geometry increases efficiency over conventional reflectors and maximizes heat distribution throughout the radiant area.
• Providing a more uniform heat distribution across the same heating surface.

Click to Download Brochure
Click to Download Manual

STP-TA11-15-BN Ships - Factory Direct

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

California Proposition 65 Warning
